Consumable and Tools

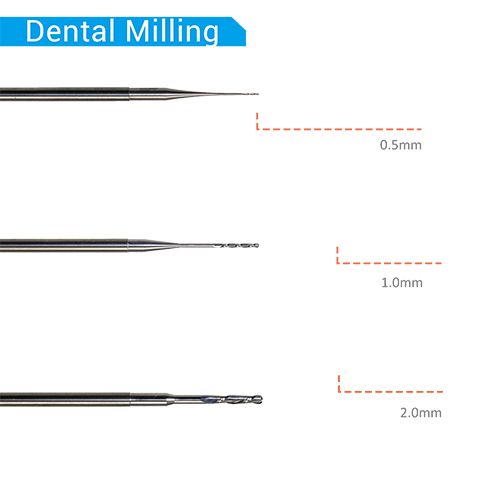

The dedicated dental milling burs have half round mucro. Range of milling is from 0.3mm to 2mm which is used for preliminary and high efficiency manufacture. 0.6mm milling burs is mainly used to mill the sculpture of groove, the elaborate process. The undercut problem can be fixed easily due to the special length of milling burs and flexible milling.
Bloomden CAD/CAM Milling Burs
Amman Girrbach
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.3/0.6/1.0/2.5 | 3.0 | 47 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |
Dent Mill
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.3/0.6/0.8/1.0/2.0/3.0 | 3.175 | 38 | DC | 2 | Zirconia/Wax/PMMA/PEEK |

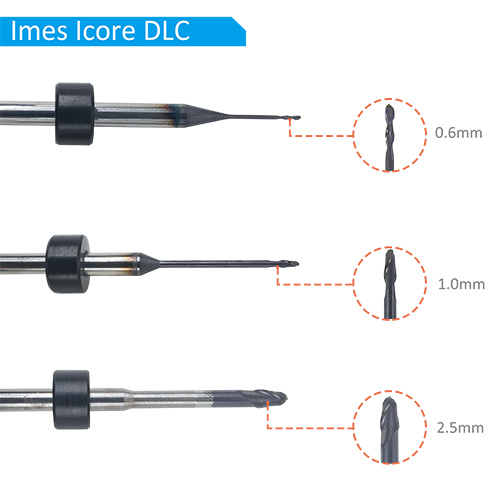

Imes-Icore
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.6/1.0/1.5/2.0/2.5 | 3.0 | 48 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |

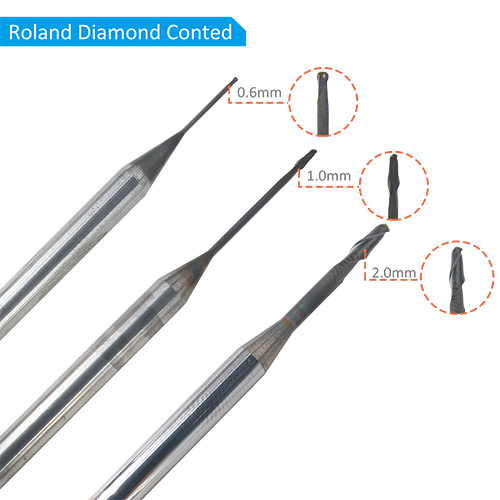

Roland
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.3/0.5/0.6/0.8/1.0/1.5/2.0/2.5 | 4.0 | 50 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |

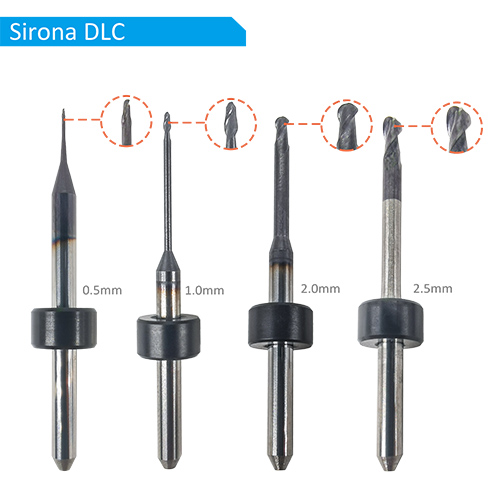

Dentsply Sinora
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.5/1.0/2.5 | 3.0 | 42 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |

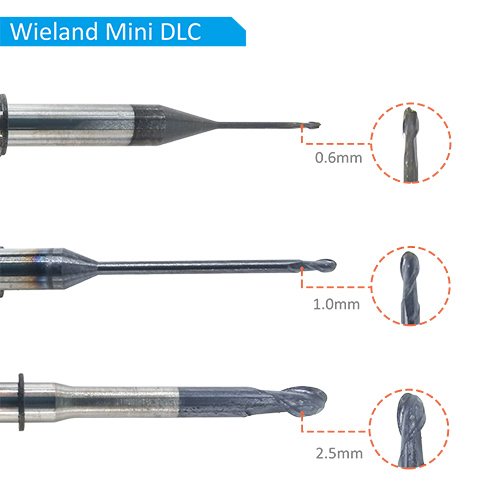

Wieland
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.7/1.0/2.5 | 3.0 | 35 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |

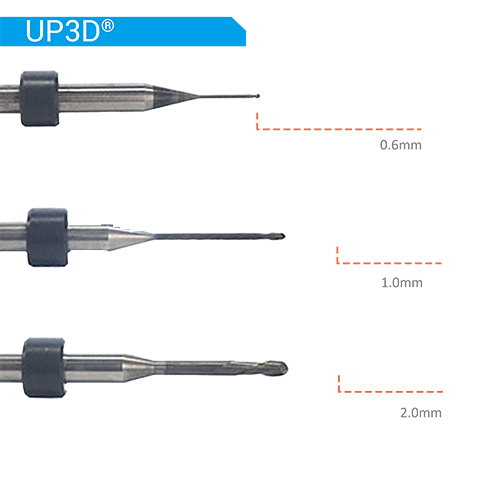

UP3D
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.6/1.0/2.0 | 4.0 | 50 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |

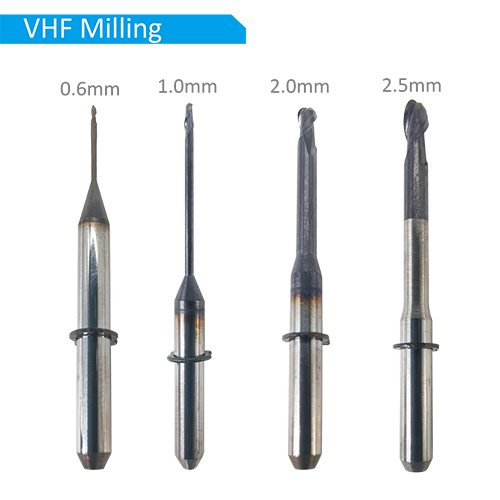

VHF K4
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.6/1.0/2.0 | 3.0 | 35 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |
VHF K5
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.6/1.0/2.5 | 3.0 | 40 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |

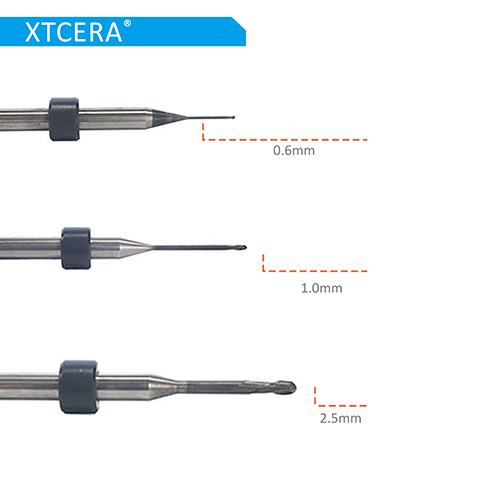

XTCERA
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.6/1.0/2.0 | 3.0 | 50 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |

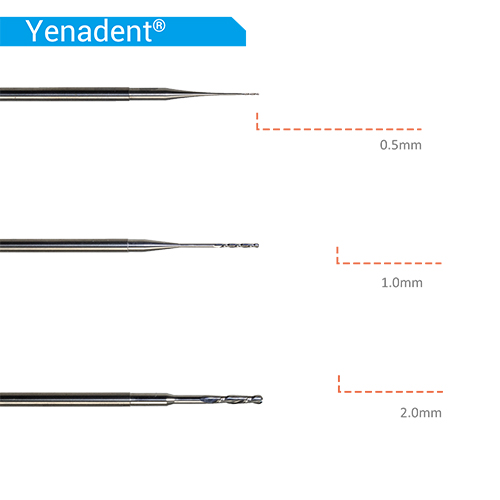

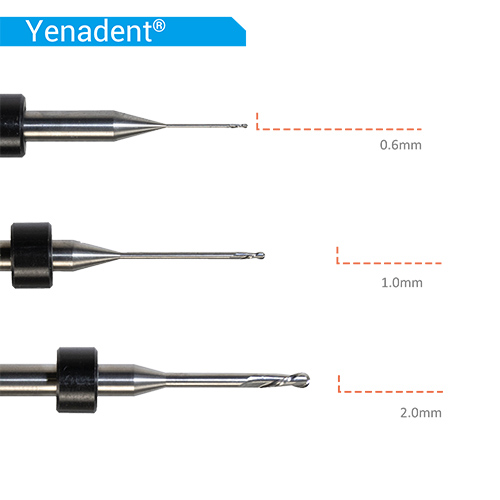

Yenadent
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.6/1.0/2.0 | 4.0 | 46 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |

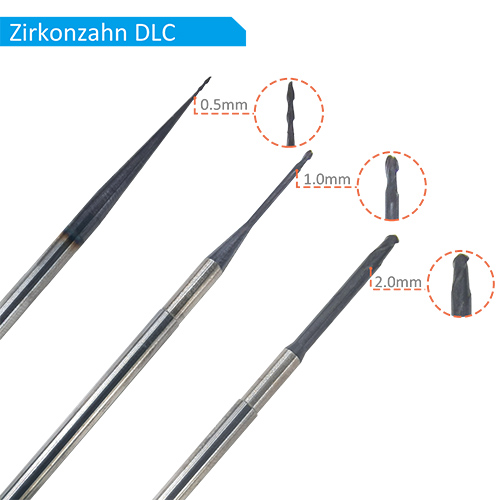

ZirkonZahn M5
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.5/1.0/2.0 | 3.0 | 57 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |
ZirkonZahn M1
| Technical Parameters | |||||
| Head Diameter/mm | Shank Diameter/mm | Overall Length/mm | Coating | Flutes | Material |
| 0.5/0.6/1.0/2.0 | 6.0 | 57 | DLC/DC | 2 | Zirconia/Wax/PMMA/PEEK |
