Laboratory Equipment
C5-level screw module
14K screen resolution
Leveling-free design
Fast printing speed
Open printing
Committed to 3D printing solutions for dental labs

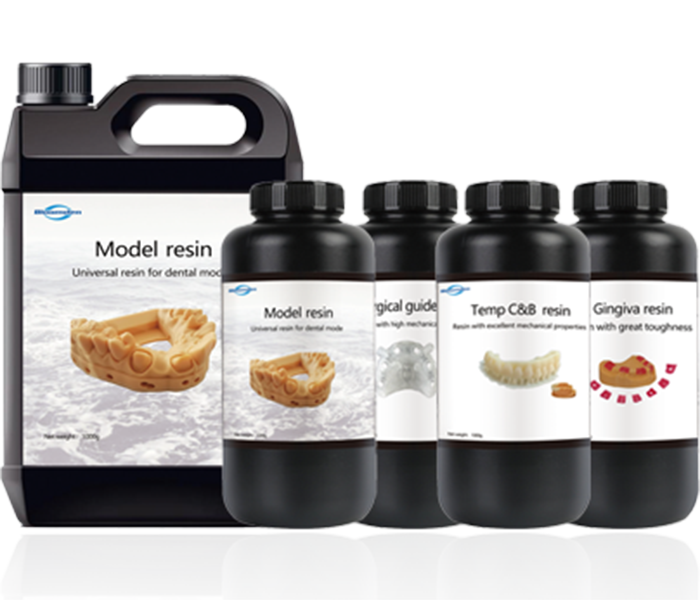

Establish three business modules: printing materials, printers, and printing services, to provide comprehensive products and services for dental labs.
Temporary Crown andBridge Printing Solution
This equipment is perfectly matched with the materials, ensuring printing efficiency, with printing completed in 20+ minutes. Facilitating the try-in of implant bridges and the digital fabrication of temporary crowns.

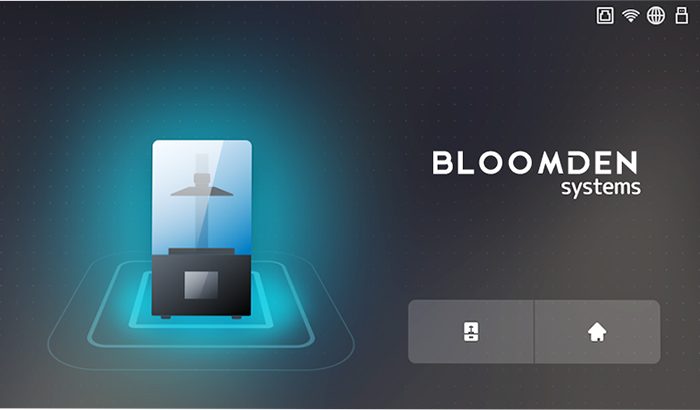

Ultra-large touch screen design, easy operation
15-degree tilt visual design, improve operator’s comfort
Precision: 14K resolution, 0.0168*0.0248mm single pixel, to ensure printing accuracy

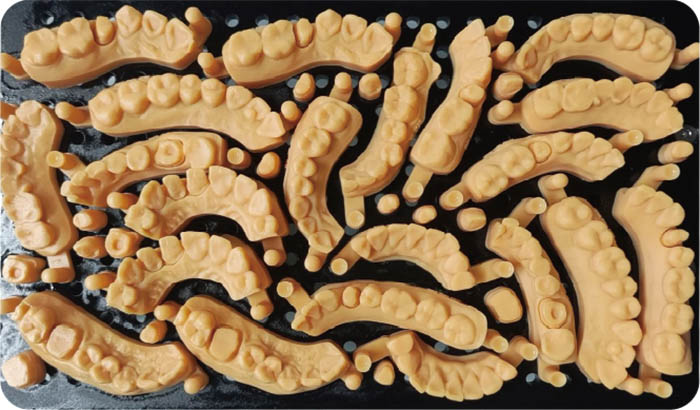

223*126*150 large printing range, to ensure printing efficiency
High-precision ground ball screw, repeated positioning accuracy of 0.003mm, to ensure printing surface accuracy

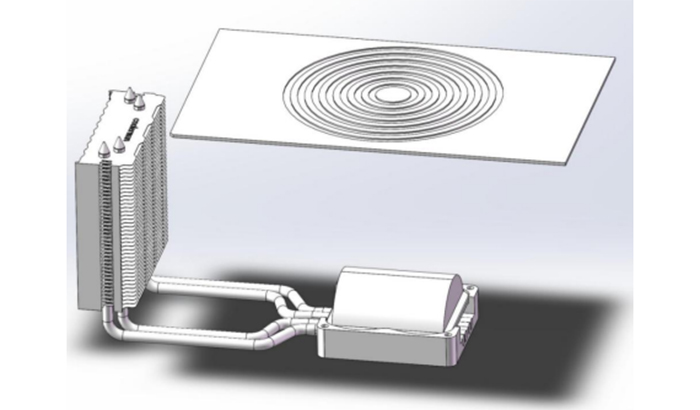

COBLED light source has good continuity and reduces dark spots. It uses point light source and two layers of correction, lens and Fresnel lens, to achieve ideal parallel light.
● Fast Forming Speed
● High Forming Accuracy
● Good Dimensional Stability
● Excellent Texture
● High Hardness
● Good Wear Resistance

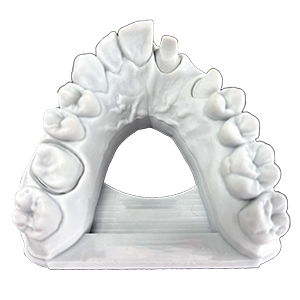

Fixed

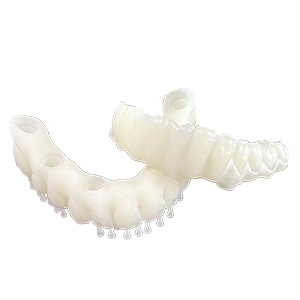

Implant

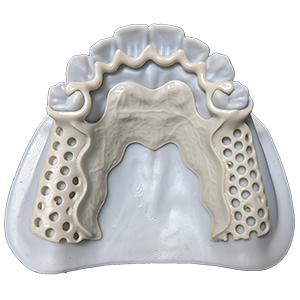

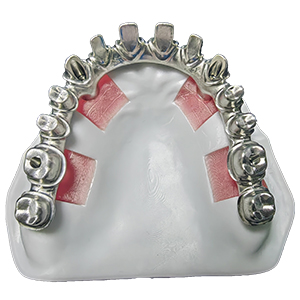

Removable

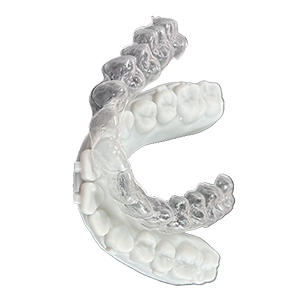

Orthdontics
Temporary Crown

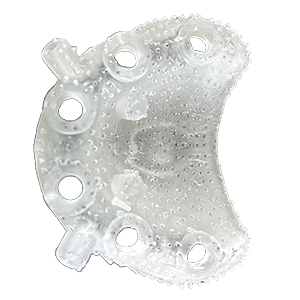

Implantation Guide

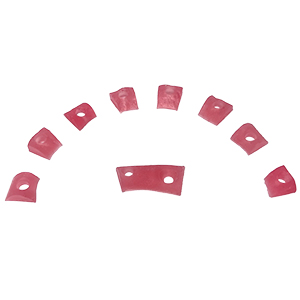

Gingiva

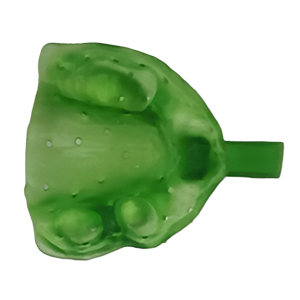

Individual Pallets

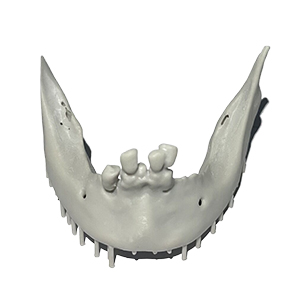

Jaw

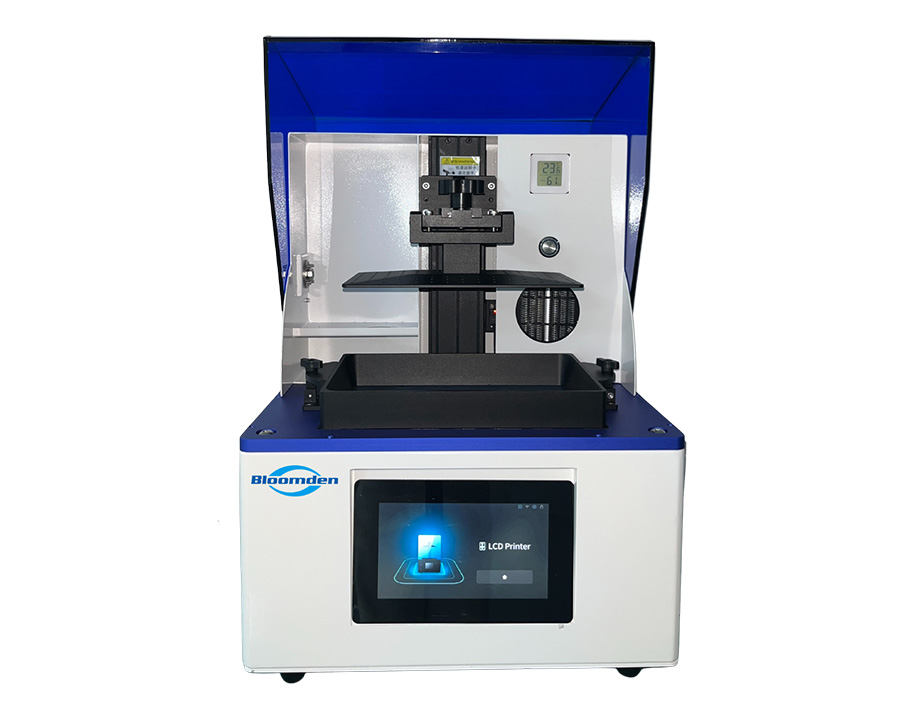

| Model D3 | D3 |
| Light source technology | COB |
| Screen resolution | 13320*5120 |
| Forming size | 223*126*150mm |
| Device size | 400*330*544mm |
| Net weight | 26kg |
| Accuracy | ±0.03mm |
| Printing Speed | 15-45mm/hour |
| Touch screen | 7-inch touch screen |
| Total power | 150W |
| Input voltage | 110-220VAC50/60Hz |
| Data format | stl,ctb,SLC |
| Data transmission | USB, Ethernet, wifi |
| Temperature control | Support |
| Device life statistics | Support |
| Open system | Applicable to 385, 405um wavelength material printing |
| Built-in parameter setting | Users can set multiple sets of different parameters for printing |
| Abnormal reminder | Printing abnormal reminder |
| Optional function | External convenient unloading systemAutomatic feeding function |
