The Ultimate Guide to Bloomden PF1 Porcelain Furnace: Installation and Operation

Bloomden dedicated to become world class brand for comprehensive dental solutions since 2012. Our super star product is  3d pro multilayer zirconia. We also supply series of high standard matched materials and machines, such as pmma, wax, titantium, milling machine, sintering furnance, pressing furnance, porcelain furnance etc.

PF1 Instruction

This type machine can be used for every dental lab. You all can have one! It is widely used for porcelain, glaze and glass ceramics.

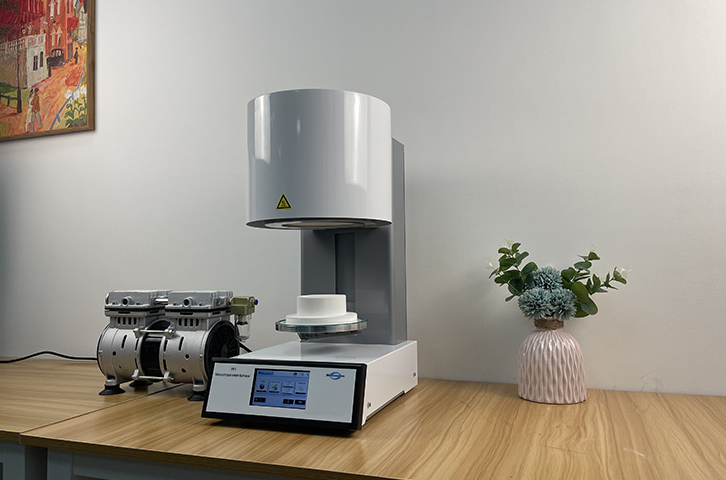

The whole set includes two parts, main machine and vaccum pump. Total weight is about 35kgs.

We can see it has a compact size.

WXDXH :Width 27cm Depth 36cm Height 53cm

Sintering platform：9cm

Net weight：35Kg

Connection:

The position: The device must be put at least 25-30cm away from the wall. Be assure that the porcelain furnace must be under normal ventilation environment. At the same time, please make sure the sockets nearby the power source. The instrument board behind must be connected firmly.

Connecting the device to the mains powder supply. First connect the vacuum pump, power supply and tube connection.

Operation

Then let us move to the main machine. The highest temperature is 1200℃. The highest increasing temperature rate is 200℃/minute.

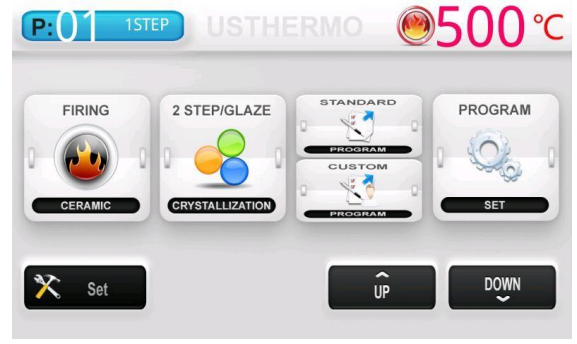

When we do porcelain and glaze, please choose first 1 STEP Firing. If we put glass ceramics inside, please choose 2 STEP.

Press NO 1 Step Firing,then put into parameters according glaze sintering curve. It includes pre-termperature, pre-time, first stage turn on/off, temperature rate, the highest temperature etc.You can see our start temperature is 450 Celsius. The highest is 840 Celsius. It depends on your glaze guidance. Then start it, the whole procedure will be automatically. The tray will be up and down by itself. When it finish,it will be alarm. Only 10 minutes for glazing, 15 minutes for porcelain. 20 minutes for glass ceramics.

Advantages

• Colorful touchable screen,clear and easy to operate.

• Huge storage for parameters.You can set 99 parameters based on your firing materials curves, just take it out easily when u do different firing.

• It can be high temperature accurancy, excellent vacuum sealing caused by all-aluminum die-casting furnace. Besides, every time it can automatically temperature correction,make sure only 1 Celsiu difference.

• World-class brand component. furnace wire from Sweden

• Quartz tube inside hearth,without pollution

• Tray pre-drying position can be customized.It can stop here or here.Maximize the evaporation of tooth moisture

This furnace offers precise temperature control and user-friendly features crucial for dental professionals. It's known for its reliability and consistency in achieving high-quality porcelain results. The PF1 model is suitable for a range of dental applications and provides an excellent balance between performance and affordability. Additionally, Bloomden typically offers good customer support and warranty coverage, enhancing your overall satisfaction and peace of mind. If you want more information about our  PF1  Porcelain Furnace, contact us via professional website www.bloomden.com or Bloomden facebook.
